8-channel Mobile DVR,SD card,GPS and BDS

F4, an 8-channel mobile DVR

F4, an 8-channel Mobile DVR, integrates global 4G wireless transmission, WIFI communication, DVR functionality, BDS/GPS dual-mode positioning, and SD card. It provides comprehensive vehicle driving records and video monitoring functions for truck fleets, buses, taxis, and other vehicles.

The 8-channel mobile DVR F4 is equipped with powerful artificial intelligence computing power and supports advanced monitoring functions such as ADAS (Advanced Driver Assistance Systems), BSD (Blind Spot Detection), DSM (Driver Status Monitoring), passenger status, cabin loading, and cargo conditions. This ensures high-level intelligent monitoring and enhances overall safety.

8-channel mobile DVR Function

GPS positioning

The GPS positioning function can record vehicle location, speed, direction and other information, and save it synchronously with video recordings.

BDS positioning

BSD positioning is a satellite navigation system independently developed by China, providing positioning, navigation and time services with global coverage.



CAN Data Collection

To acquire vehicle and engine telematics data



Video

H265/H264; 6 channelAHD video input,1080p video



Storage

2.5 inch mechanical/solid-state drive;2*SD cards, pluggable



Cloud storage

Capable of storing hours of footage with options to stream or download.



Alarm

Emergency alarm, parking timeout alarm. overspeed alarm, line deviation alarm. power failure alarm, low power alarm. GPS fault alarm, GPS/4G antenna open/short circuit alarm, etc.



Vehicle monitoring

Vehicle automatic monitoring and positioning function, Geo-fence function mileage statistics, blind spot reporting function, trajectory storage function etc.



Voice calls

Support call and remote monitoring functions.;TTS text and voice broadcasting functions

8-channel mobile DVR Specification

Item	Detailed Specification
Appearance structure	Size: 145×58×193mm Shell material: PC+ABS, body material: aluminum alloy
Protection grade	IP54
Environmental suitability	Operating temperature: -30℃～70℃, Storage temperature: -40℃～85℃
Working voltage	Working voltage range: 9 - 32V
	Support car battery protection: 8.5V±0.5V/12V system, 17V±0.5V/24V system
	12V/24V adaptive，36V system is not supported
Ultra-low power consumption design	Static current <2mA Support zero- power-consumption sleep mode
Power consumption	Average power consumption is less than 30W
Super capacitor	3 super capacitors can supply power to the system and camera
	2~3s to save the complete video before power failure
Indicator lights	4 lights (1 positioning signal, 1 communication signal, 1 video recording, 1 terminal operation indication)
External interface	Power supply: TE-1318384-2
	Positioning antenna connector: Fakra-C blue
	Communication antenna connector: Fakra-D
	Video interface: M12-4
	IPC interface: M12-6
Video	Maximum 6 channels of AHD/CVBS video input, can supply power to the camera, the output voltage value is 12V, single channel maximum output current 0.5A
	1-channel IPC video input connector, 12V power supply
	1-channel CVBS output
Audio	2-way camera recording, recording line supports key input detection
	1 way shout MIC input
Storage	2.5-inch mechanical / solid state hard disk, can support 7mm / 9.5mm, hard disk shock absorption device fixed in the terminal (Maximum capacity support 2TB)
	2 SD cards, pluggable mode, does not support simultaneous recording (Maximum capacity support 512GB)
Data interface	2-way RS232 interface, 5V power supply @ 500mA
	1-way 485 interface, 1 way IPC interface, 12V power output (1A)
Positioning module	GPS and BeiDou positioning module
Communication module	4G module
SIM card	Drawer plug-in SIM card
IO function	8-channel input: ACC, left steering, right steering, door edge, emergency, reverse, brake, speed pulse
	1 way output: fuel break power

8-channel mobile DVR file download

8-channel vehicle hard disk video recorder file download: If our product meets your requirements, you can right-click to save these pictures; forward them to your colleagues;

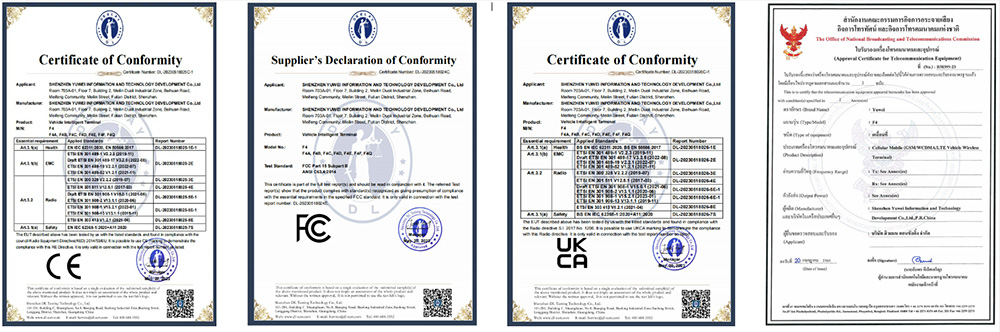

8-channel mobile DVR Certificate
