ADAS HD Dash Camera System for Car

Y5

Advanced Driving Assistance System(ADAS) HD camera is a key component of the advanced assisted driving system. Through ADAS software algorithms, advanced driving assistance functions such as lane departure warning, lane keeping, collision avoidance or pre-collision detection, pedestrian protection, adaptive lighting control, and traffic sign recognition can be realized.

Product Features

Specification parameters

Product Features

ADAS HD Dash Camera

LDW - Lane Departure Warning:LDW system alerts the driver when their vehicle is merging to another lane without turn signals activated.

FCW – Forward Collision Warning:FCW system monitors the speed of the vehicle and the vehicle in front of it. It also monitors the distance between the 2 vehicles. The system will alert the driver once the system foresees an impending collision.

HMW – Headway Monitoring Warning:HMW system alerts the driver when the vehicle in front is getting too close to the vehicle.

PCW – Pedestrian Collision Warning:PCW system alerts the driver when it detects a potential collision with pedestrians.

TSR - Traffic sign recognition :No Parking/Speed Limit Sign/Traffic lights.

Front car start

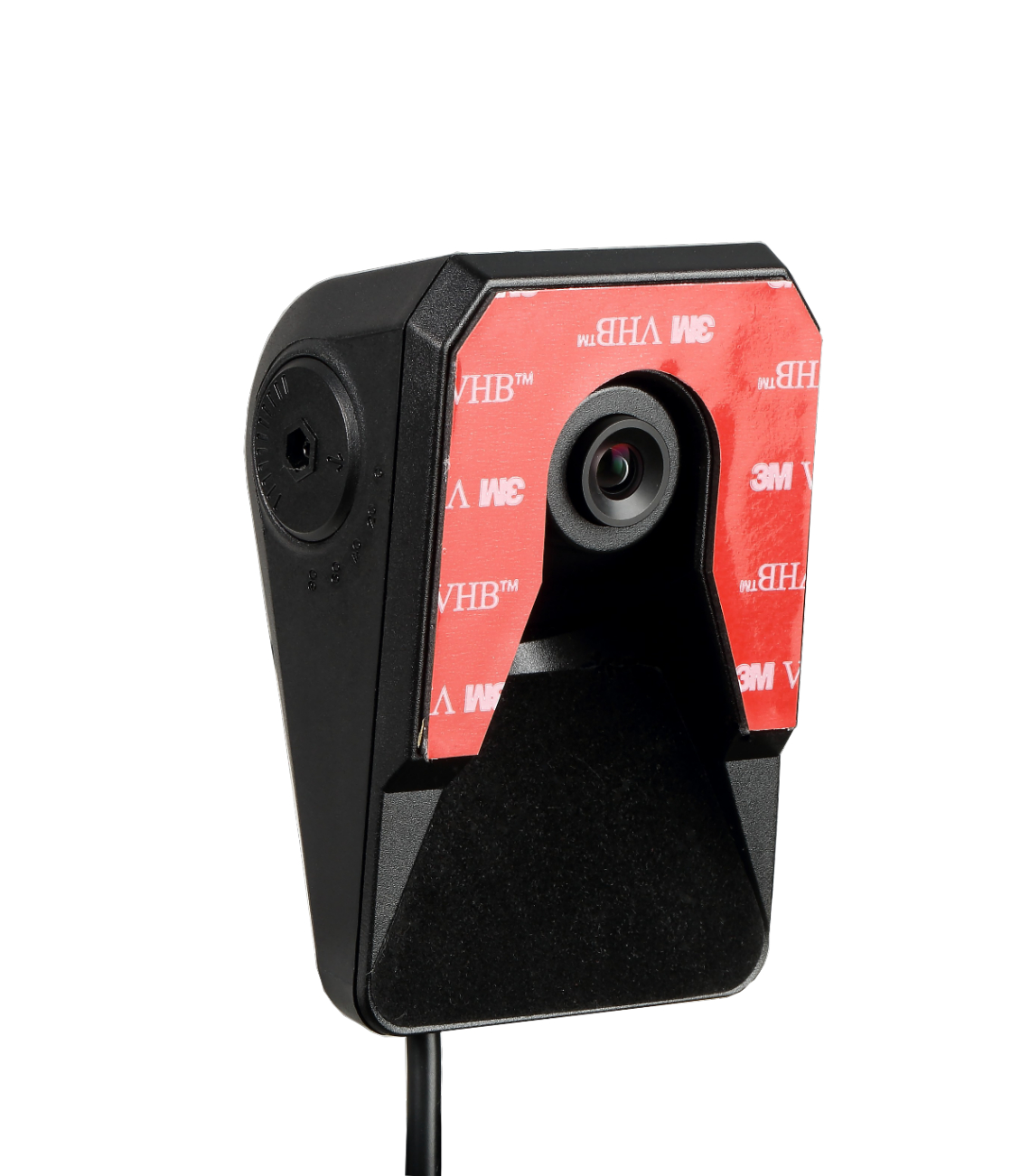

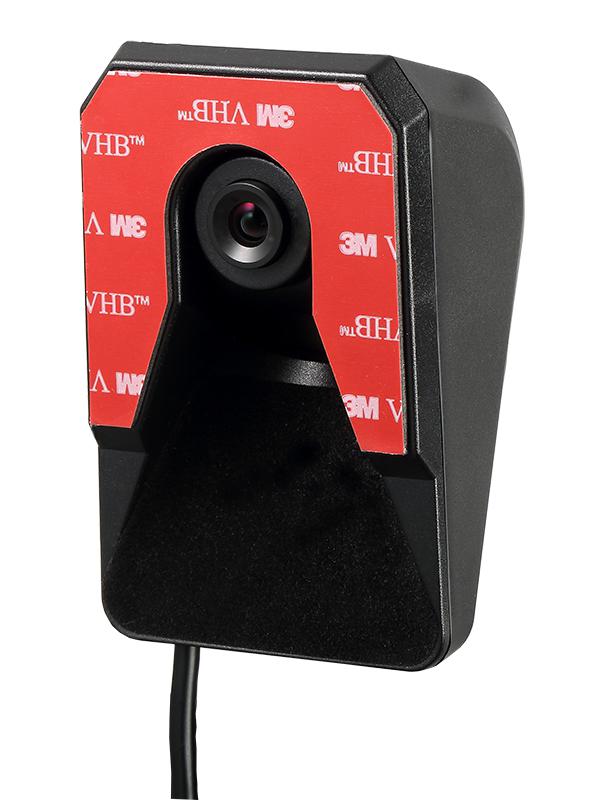

ADAS Camera For Car

Product Features:

1/3" CMOS 2 million pixel sensor for high resolution and clear images

Low illumination of 0.1Lux

Automatic exposure control

Automatic white balance

Adjustable lens angle in both vertical and horizontal directions

Plastic housing

Stable and efficient car-mounted BMW connector

Suitable for indoor and in-car applications

Specification parameters

Product number	ADAS-A1080PS-Y 5, ADAS-A1080PS-Y 5A
Image Sensor	1/ 3' CMOS 2 million pixels
signal system	PAL
Effective Pixels	1920 (H) × 1080 (V)
Minimum illumination	0.1LUX
white balance	automatic
depth of field	3m---∞
signal-to-noise ratio	42dB _
Frame rate	25fps
video standards	AHD
lens	6mm
aperture	F/NO=2.3
field of view	D/H/V=60°/52°/29°
Analytical power	Center >= 7 00 line
Filter model	650 nm filter
Day and night switching mode	/
power supply	140mA @DC12V
Operating temperature	-30℃~70℃
storage temperature	-40℃~85℃
