Vehicle Camera

ADAS Camera For Car
ADAS Camera For Car

ADAS-A1080PS-Y5A

Leam More
Advanced Driving Assistance System(ADAS) HD camera is a key component of the advanced assisted driving system. Through ADAS software algorithms, advanced driving assistance functions such as lane departure warning, lane keeping, collision avoidance or pre-collision detection, pedestrian protection, adaptive lighting control, and traffic sign recognition can be realized.

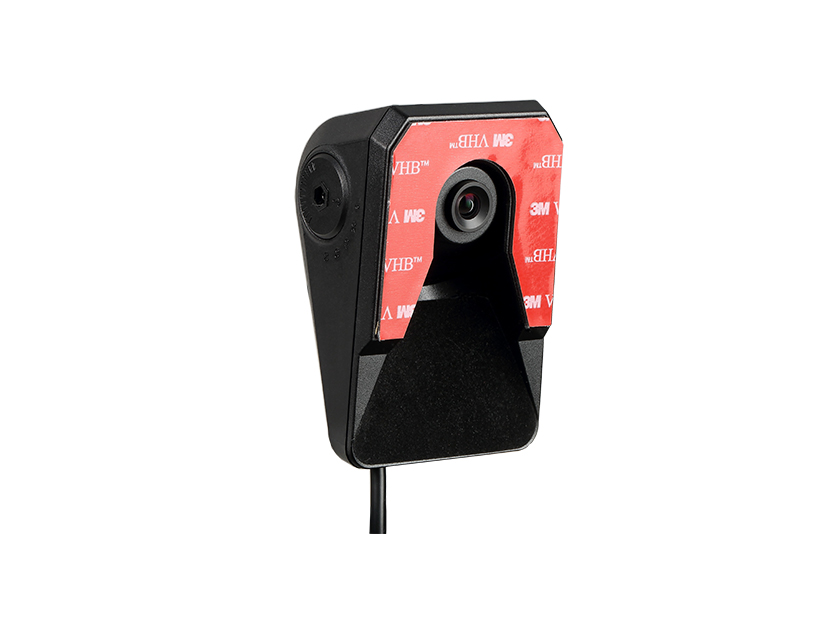

DSM Camera Y7
DSM Camera 720p Y7

DSM-A720PS-Y7

Leam More
DSM Camera Y7 is an AI device developed by Yuwei based on image recognition technology. Equipped with its independently-developed advanced image intelligent processing core algorithm, this device can perform real-time monitoring of the driver's fatigue status and unsafe driving behavior, provide timely voice safety warnings, and report to the management platform. This provides drivers with more proactive and intelligent safety assurance, and reduces the incidence of safety accidents.

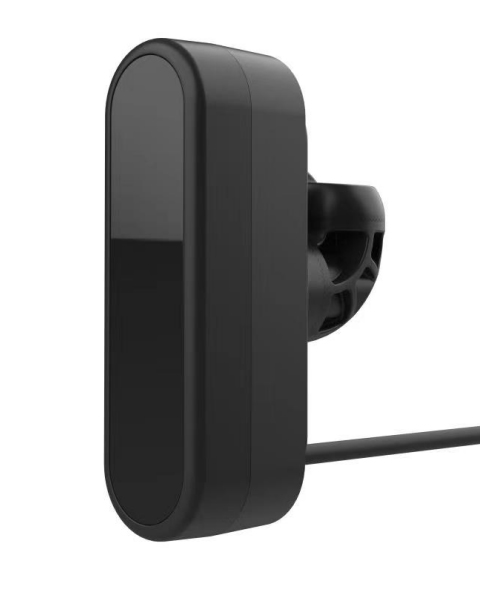

DSM-A720PS-Y10
DSM Camera Y10

DSM-A720PS-Y10

Leam More
The DSM HD camera 720P 'Y10' is an AI device developed by Yuwei based on image recognition technology. Equipped with its independently-developed advanced image intelligent processing core algorithm, this device can perform real-time monitoring of the driver's fatigue status and unsafe driving behavior, provide timely voice safety warnings, and report to the management platform. This provides drivers with more proactive and intelligent safety assurance, and reduces the incidence of safety accidents.

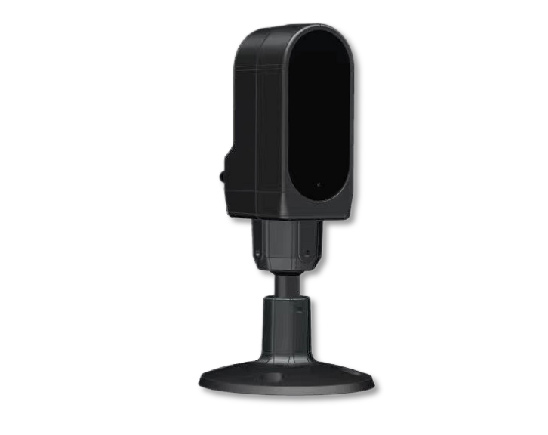

DSM camera HD Y13
DSM camera HD Y13

DSM-A720PS-Y13

Leam More
The DSM camera high-definition Y13 supports the following functions: 1. Fatigue driving detection 2. Smoking detection 3. Phone call detection 4. Distracted driving detection 5. Abnormal state detection.

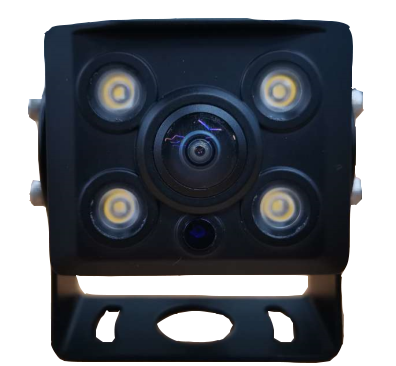

waterproof backup camera
Waterproof Backup Camera

A720PJ-3228-412

Leam More
The waterproof reverse camera (rear blind spot camera) is installed at the rear of the truck and is combined with a display screen installed inside the vehicle to form a complete reverse camera system. During reverse parking, real-time video images of the rear area can be viewed.

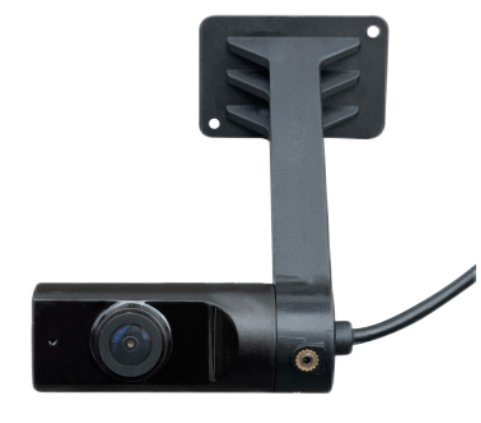

HOD HD Driver Camera
HOD HD dash Camera

A720PJ-6219-442

Leam More
HOD HD Driver Camera is suitable for monitoring the driver's hands leaving the steering wheel, playing with mobile phones, and seat belt monitoring systems. It can be used with the host algorithm to monitor the driver's dangerous driving behavior and other functions.
Front blind spot HD BSD camera
Front blind spot HD BSD camera

A720PJ-3123-412-F

Leam More
The Front blind spot HD BSD camera is a camera mainly used to monitor the blind spot on the right side of the vehicle. It can transmit real-time images to the algorithm host, identify pedestrians in blind spots, and perform pedestrian collision warnings in dangerous areas. Both in-car smart prompts and external audio are used. Optical alarms provide two-way danger reminders for drivers and pedestrians, thereby greatly reducing traffic accident rates.
BSD camera
HD BSD camera Right blind spot

A720PJ-3223-412-R

Leam More
The BSD camera is a camera mainly used to monitor the blind spot on the right side of the vehicle. It can transmit real-time images to the algorithm host, identify pedestrians in blind spots, and perform pedestrian collision warnings in dangerous areas. Both in-car smart prompts and external audio are used. Optical alarms provide two-way danger reminders for drivers and pedestrians, thereby greatly reducing traffic accident rates.

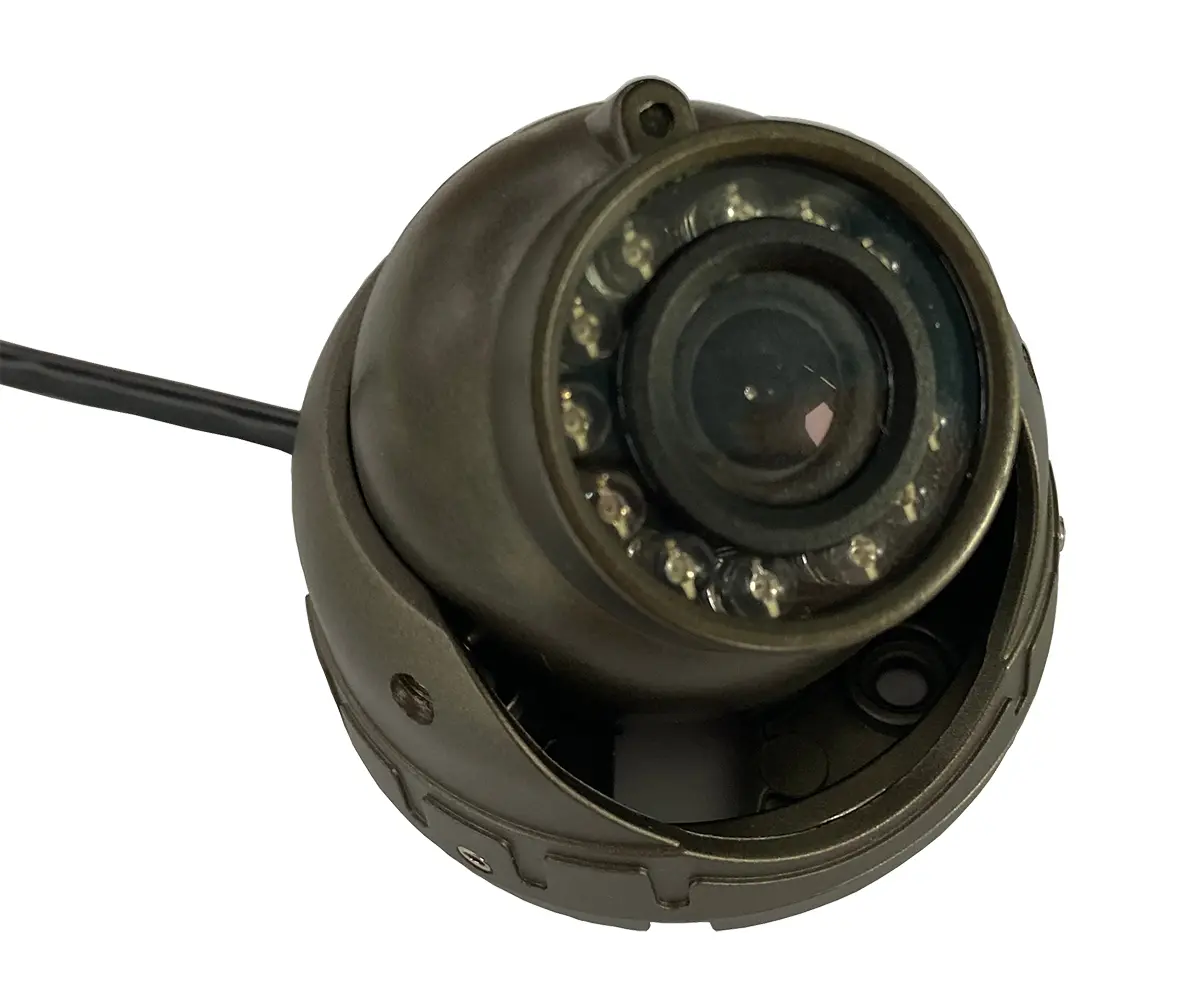

AHD HD Camera
AHD HD Cylinder Camera

ABS-F222-412

Leam More
AHD cameras refer to cameras using analog high-definition (AHD) technology, with high-definition resolutions of 720p or 1080p

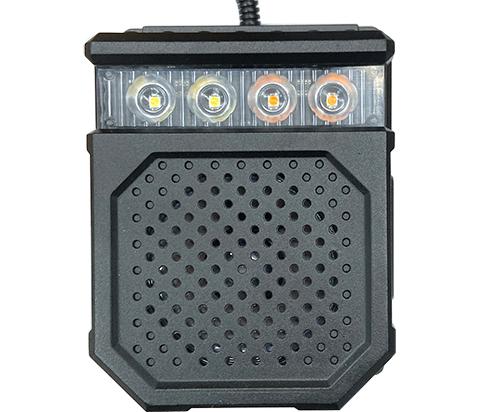

Sound and light alarm
Audible alarm

V2.0

Leam More
This is an intelligent audio and visual alarm device designed for use in dump trucks, buses, coaches, trucks, and special vehicles. It is equipped with a high-power speaker and a high-intensity flashing A light. It has an RS232 interface for setting alarm sounds and flashlights. The device has an aesthetically pleasing structure, easy installation, and is dustproof and waterproof, paired with an aviation connector.
HD 720P car camera
HD 720P car camera

A720PS-F217-812

Leam More
Yuwei HD 720P car camera gives you a clear video recording experience, is resistant to high temperatures, and is suitable for installation and use in car environments.

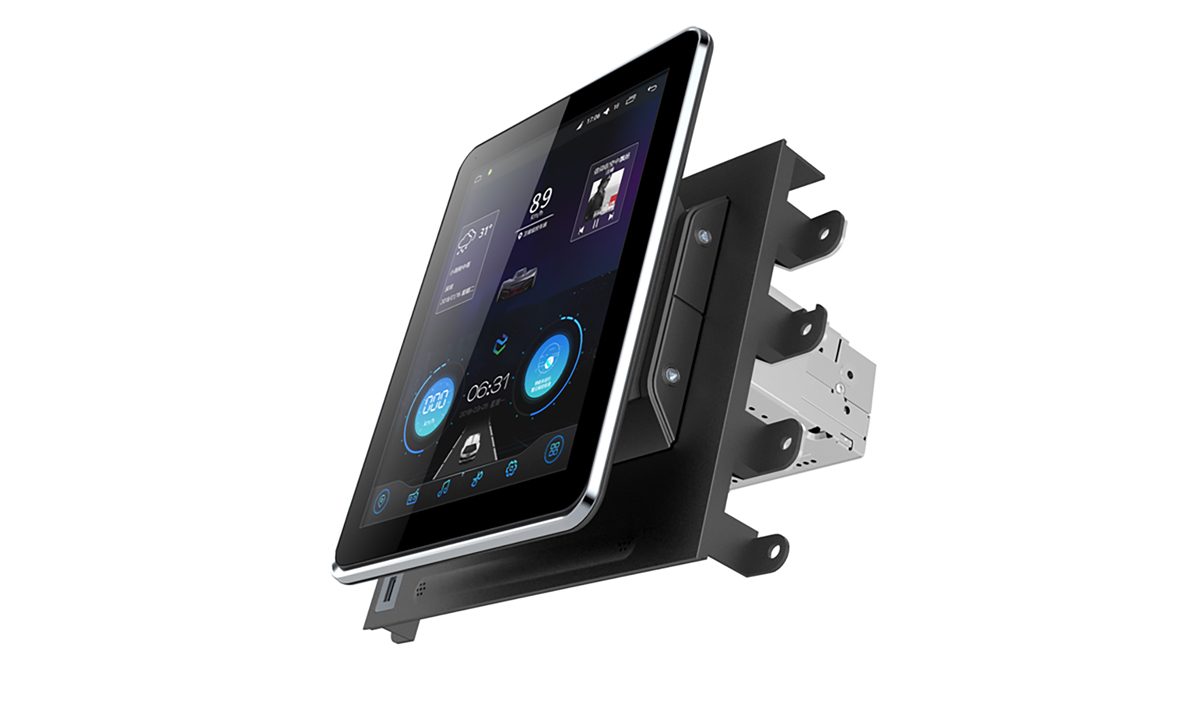

Infotainment Screen M7
Infotainment Screen

M3-M5

Leam More
M3 is an Infotainment Screen based on the Android operating system. It is designed for embedded installation and features a 10.1-inch touchscreen display. The screen supports WiFi connection, Bluetooth, navigation, multimedia entertainment, radio, 8-channel amplifier, 4-channel video input, multifunction steering wheel, air conditioning control, vehicle control, phone mirroring, NM network management, UDS diagnostics, and more. It meets the requirements of vehicle manufacturers for low power consumption, optimized vehicle maintenance systems, and enhances the market competitiveness of automotive companies as a whole.

Vehicle camera system

Commercial vehicle Dash Cam

Parameter classification

Parameter item

Details

Remark

Basic parameters

Appearance

device integrate with ADAS cam


Product Type

4G DVR Car Video Terminal


network standard

4G Global Band


Memory

256MB(Flash)+1GB(DDR)


Front camera

(ADAS Camera)

1080P, MIPI Camera, H:112°V:55°


In-car camera

AHD 720P, with light sensor/infrared night vision,


DSM camera

AHD Camera, single pass, infrared night vision, H=60° V=42°


4th Channel camera

AHD 720P


Hardware function









GPS

Support: GPS+BDS


Wi-Fi

802.11b/g/n


trumpet

8 ohms 1.5 watts, 1 channel, with sound cavity


MIC

Built-in dual silicon microphone design


Accelerometer

3-axis accelerometer


Interface

micro 5Pin USB

USB×1, data interface


BMW connector

Power+/GND

ACC

Left turning signal cable

Right turning signal cable

SOS Cable (Panic button)


RS232

1*RS232


SIM card holder

Micro SIM


TF card holder

TF×2 (Card 1 and Card 2 support circular storage)


Power supply

Power supply

12V/24V power supply


Button&

Indicator light



Reset button

Long press the power button for 8 seconds to reset


indicator light

2-color indicator


Alarm key

Standard emergency alarm connector




Antenna



GPS Antenna

Built-in ceramic antenna


4G antenna

Built-in FPC+IPEX transposon


WIFI antenna

Built-in FPC+IPEX transposon


Memory card

4G2TB, patented DXR streaming storage format


Electrical Specification

Operating temp.

-20℃70℃


Storage temp.

-40℃85℃


Static Protection

6KV contact, 10KV air


Vibration test

Car vibration


Current consumption

When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.)

When ACC OFF: ≤3mA


Other quality requirements

According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)

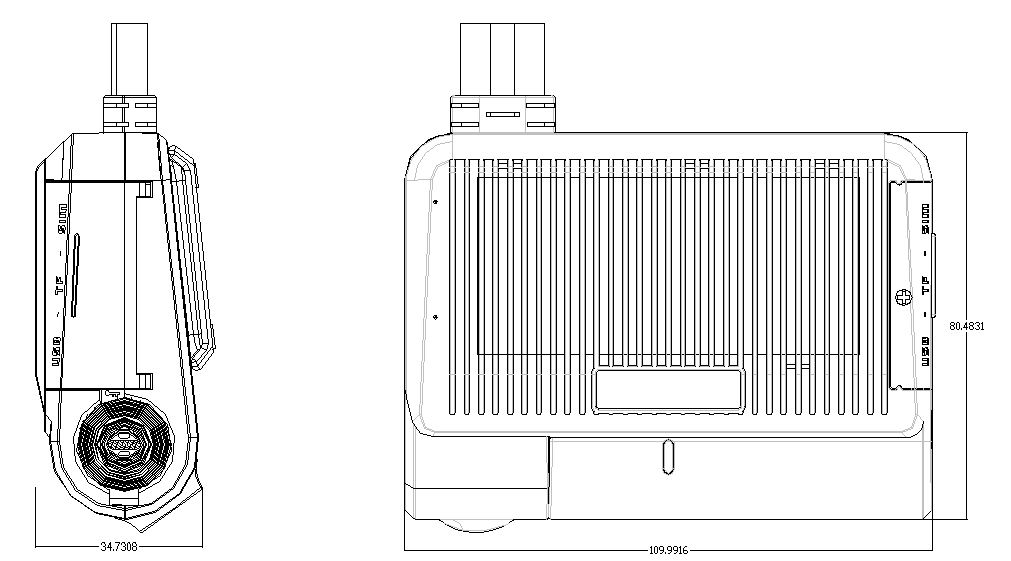

Product specification pictures:

Fleet Dash Cam with GPS and HD cameras


For details, please refer to: Commercial vehicle driving recorder

Car Mobile DVR

Item

Detailed Specification

Appearance structure

Size: 145×58×193mm

Shell material: PC+ABS, body material: aluminum alloy

Protection grade

IP54

Environmental suitability

Operating temperature: -30℃70℃,

Storage temperature: -40℃85℃

Working voltage

Working voltage range: 9 - 32V

Support car battery protection: 8.5V±0.5V/12V system, 17V±0.5V/24V system

12V/24V adaptive36V system is not supported

Ultra-low power consumption design

Static current <2mA

Support zero- power-consumption sleep mode

Power consumption

Average power consumption is less than 30W

Super capacitor

3 super capacitors can supply power to the system and camera

2~3s to save the complete video before power failure

Indicator lights

lights (1 positioning signal, 1 communication signal, 1 video recording, 1 terminal operation indication)

External interface

Power supply: TE-1318384-2

Positioning antenna connector: Fakra-C blue

Communication antenna connector: Fakra-D

Video interface: M12-4

IPC interface: M12-6

Video

Maximum 6 channels of AHD/CVBS video input, can supply power to the camera, the output voltage value is 12V, single channel maximum output current 0.5A

1-channel IPC video input connector, 12V power supply

1-channel CVBS output

Audio

2-way camera recording, recording line supports key input detection

1 way shout MIC input

Storage

2.5-inch mechanical / solid state hard disk, can support 7mm / 9.5mm, hard disk shock absorption device fixed in the terminal (Maximum capacity support 2TB)

2 SD cards, pluggable mode, does not support simultaneous recording (Maximum capacity support 512GB)

Data interface

2-way RS232 interface, 5V power supply @ 500mA

1-way 485 interface, 1 way IPC interface, 12V power output (1A)

Positioning module

GPS and BeiDou positioning module

Communication module

4G module

SIM card

Drawer plug-in SIM card

IO function

8-channel input: ACC, left steering, right steering, door edge, emergency, reverse, brake, speed pulse

1 way output: fuel break power


For details, please refer to: Car Mobile DVR
