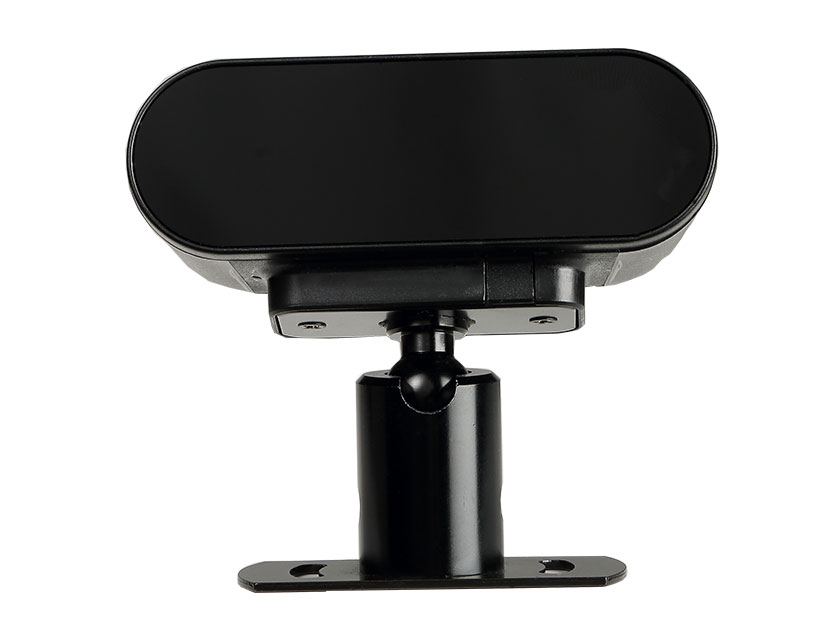

Driver Status Monitoring (DSM) Camera Y7

Y7
Driver Status Monitoring (DSM) Camera Y7.It utilizes 940NM infrared fill light to effectively eliminate interference from external ambient light. It is equipped with a built-in video amplifier, providing high-quality audio and video signal output. It can operate continuously in harsh environments ranging from -20 to 70 degrees Celsius.

Product Features

Function Description

Specification parameters

Product Features
Driver Status Monitoring (DSM) Camera

Fatigue Driving (Yawning/Eye closing)

Driver Distracted

Phone Calling

Smoking

No Driver Detected

Face ID

Seat Belt Detection

DSM cameras
Violent Driving:

Harsh Acceleration

Hard Braking

Sharp Turn

Over Speeding

Roll-over

Collision

Function Description

Application scenarios:

Installed in the vehicle, suitable for driver behavior detection.


DSM HD 720P camera

DMS-Fatigued driving

 DSM HD 720P camera

  DMS-Call

 DSM HD 720P camera

HOD-seat belt detection


DSM HD 720P camera

BSD(Right)

DSM HD 720P camera

BSD(Forward)



Specification parameters
Sensor Model:1MCOMS
Sensor Size:4-Jan
Pixel Size:2.8um*2.8um
Effective Pixels:1288*728
Focal Length:3.91mm
Aperture:F2.0
Depth of Field:0.7m---∞
Focus Distance:0.9
IR Filter:940nm
Optical Angle of View (FOV - D/H/V):75°/60°/42°
Distortion:<-36%
Center Resolution:>=500line
Operating Voltage:5V-16V
Operating Current:5V:150mA-220mA
Video Output:AHD-720P
Video System:PAL/NTSC

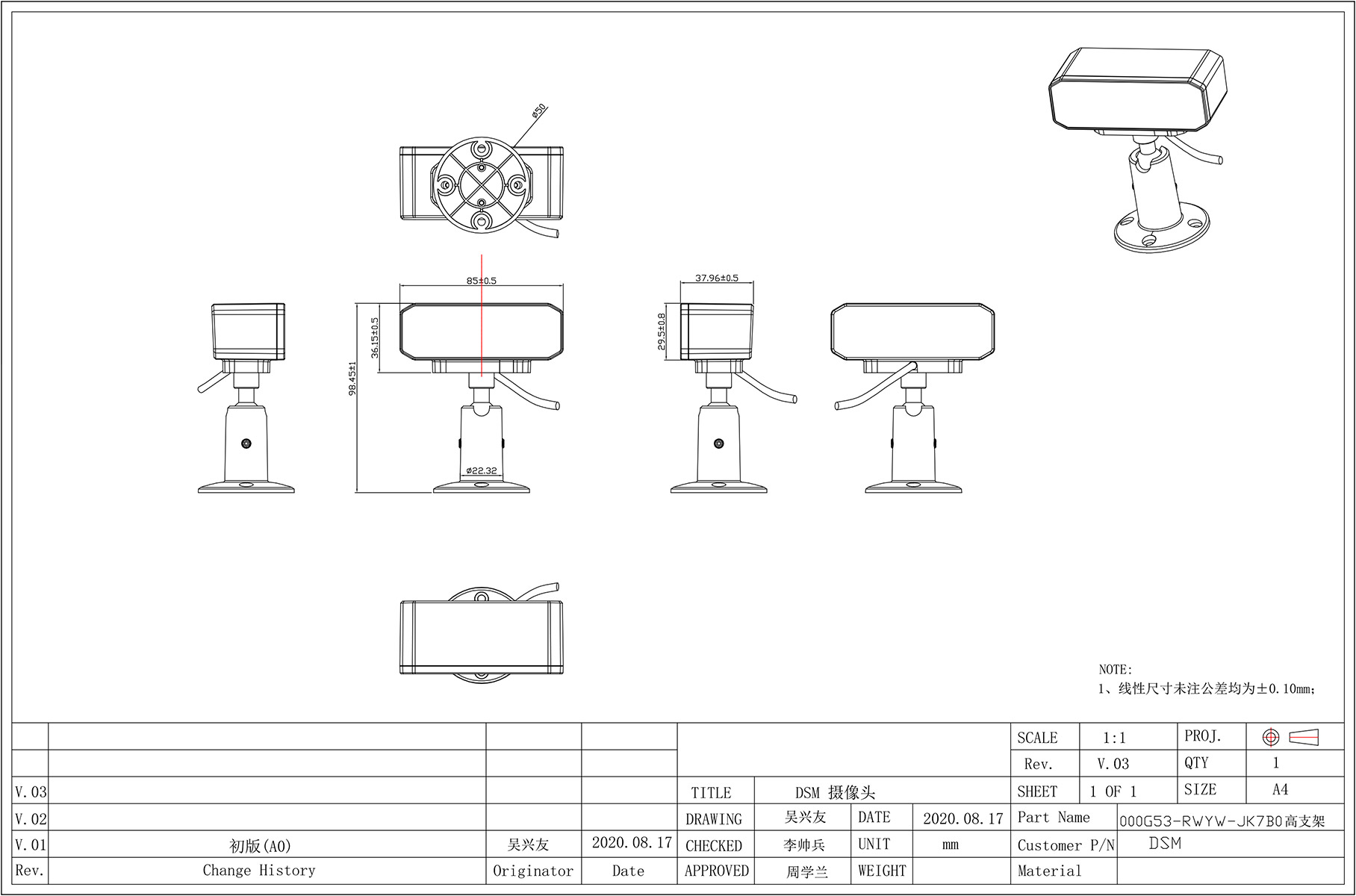

Product Dimensions:78*85*50
Operating Temperature:-20°----70°
Storage Temperature:-30°----85°
