3 Channel Dash Cam

V5-3CH

This is a 3-channel dashcam developed by Yuwei, equipped with GPS real-time positioning and 1080p video recording capabilities, providing services for fleet video monitoring and tracking management.

The V5 dashcam supports 3 camera channels and can be installed with Android or Linux systems. It offers real-time audio and video recording and utilizes dual TF card storage. It achieves real-time video transmission through global 4G network connectivity, while GPS/BDS ensures accurate tracking.

The V5 also features built-in Advanced Driver Assistance Systems (ADAS, DSM) for enhanced safety. Currently, the Yuwei 3-channel dashcam is widely used in over 30 countries for various applications including trucks, buses, ride-hailing vehicles, taxis, logistics, and government vehicles.

Product Features

Specification parameters

Product Features

Built-in positioning module and antenna, support GPS/BDS dual mode positioning.

Built-in communication module and antenna, support Global 4G communication, support SMS command function.

Terminal has ultra-clear real-time video recording, integrate 1-channel 1080P high-definition camera, and can be externally connected to 3-channel 720P high-definition cameras.

Maximum support 2*2TB TF card, which can store real-time video.

Support ADAS (advanced driver assistance system), DSM (driver status monitoring) functions.

Support face recognition, non-mask recognition and people counting functions.

Have 1 USB interface, support driving record export function.

Specification parameters

Parameter classification	Parameter item	Details	Remark
Basic parameters	Appearance	device integrate with ADAS cam
	Product Type	4G DVR Car Video Terminal
	network standard	4G Global Band
	Memory	256MB(Flash)+1GB(DDR)
	Front camera (ADAS Camera)	1080P, MIPI Camera, H:112°V:55°
	In-car camera	AHD 720P, with light sensor/infrared night vision,
	DSM camera	AHD Camera, single pass, infrared night vision, H=60° V=42°
	4^thChannel camera	AHD 720P
Hardware function	GPS	Support: GPS+BDS
	Wi-Fi	802.11b/g/n
	trumpet	8 ohms 1.5 watts, 1 channel, with sound cavity
	MIC	Built-in dual silicon microphone design
	Accelerometer	3-axis accelerometer
Interface	micro 5Pin USB	USB×1, data interface
	BMW connector	Power+/GND ACC Left turning signal cable Right turning signal cable SOS Cable (Panic button)
	RS232	1*RS232
	SIM card holder	Micro SIM
	TF card holder	TF×2 (Card 1 and Card 2 support circular storage)
Power supply	Power supply	12V/24V power supply
Button& Indicator light	Reset button	Long press the power button for 8 seconds to reset
	indicator light	2-color indicator
	Alarm key	Standard emergency alarm connector
Antenna	GPS Antenna	Built-in ceramic antenna
	4G antenna	Built-in FPC+IPEX transposon
	WIFI antenna	Built-in FPC+IPEX transposon
Memory card	4G～2TB, patented DXR streaming storage format
Electrical Specification	Operating temp.	-20℃～70℃
	Storage temp.	-40℃～85℃
	Static Protection	6KV contact, 10KV air
	Vibration test	Car vibration
	Current consumption	When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.) When ACC OFF: ≤3mA
	Other quality requirements	According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)

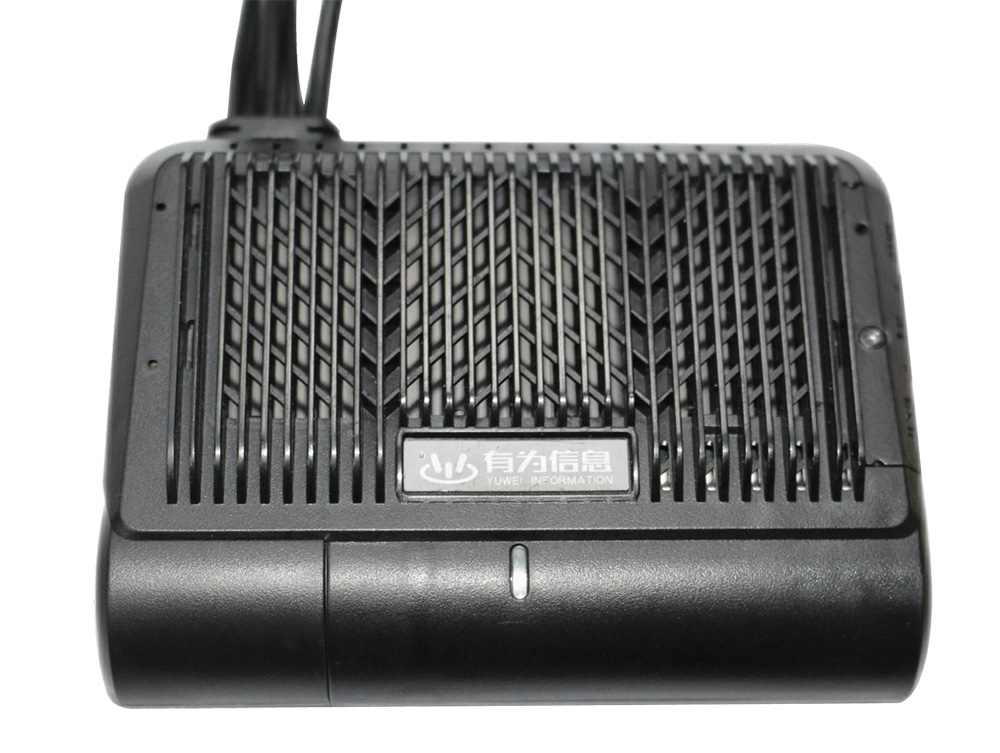

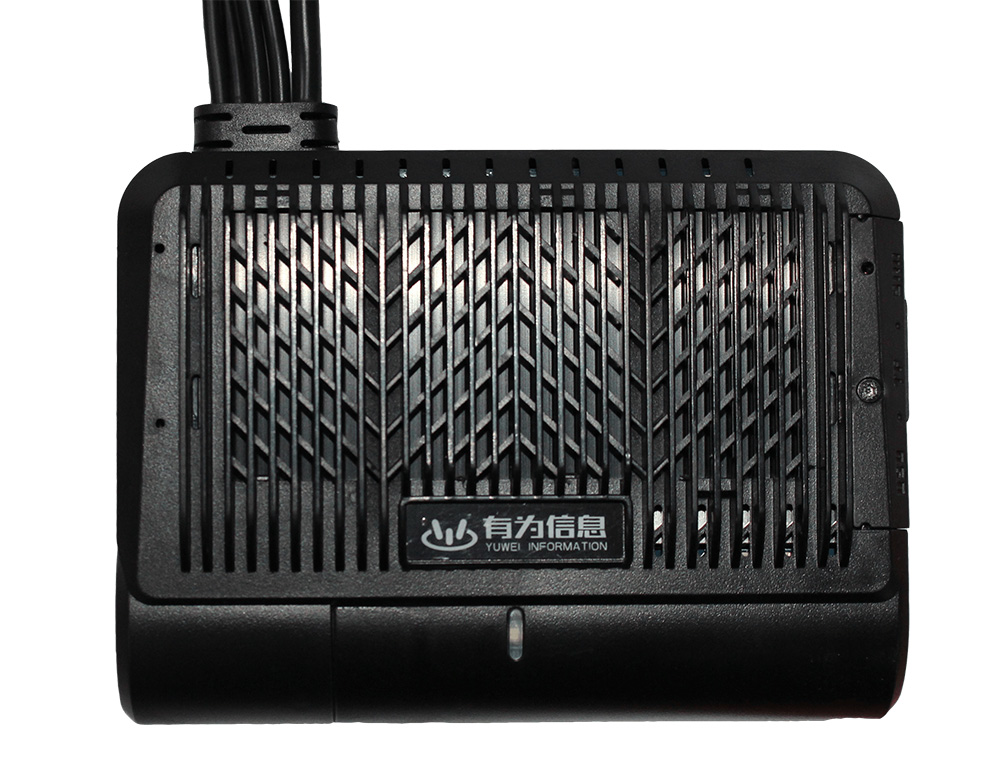

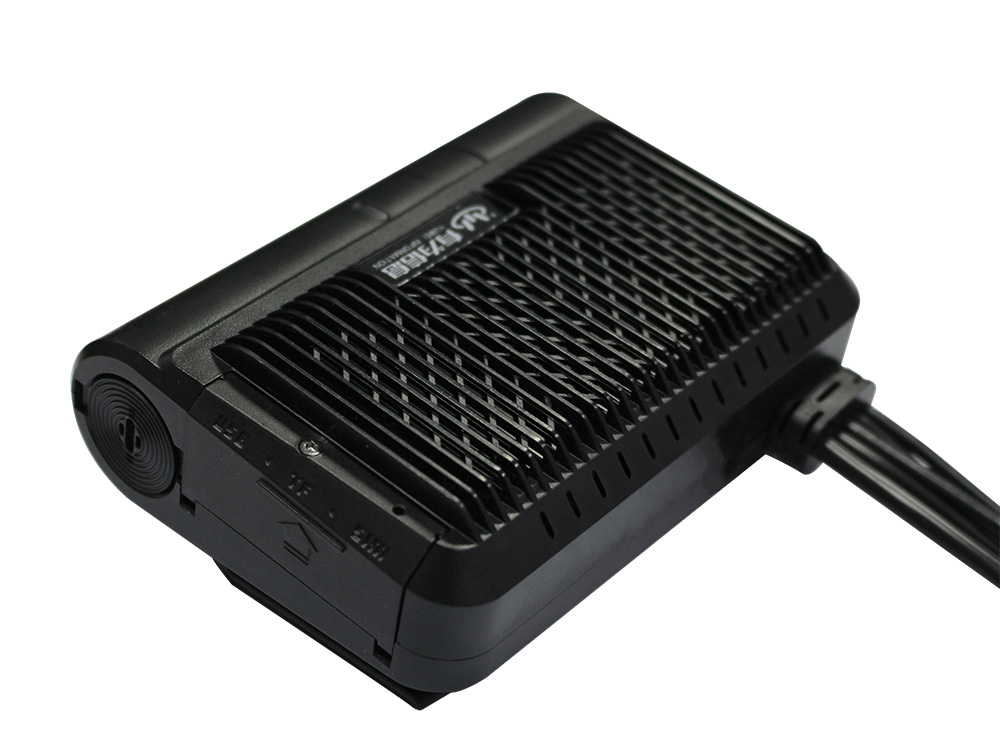

3 Channel dash cam specification pictures:

3 channel dash cam

3 Channel Dash Cam

l Red light

Equipment situation	Light status
Before the program is ready	Solid on
during upgrade	On for 1 second, off for 4 seconds
update completed	\
camera lost	On for 0.1 seconds, off for 0.1 seconds, flashing 4 times at a time, flashing once every 4 seconds
SIM card missed	On for 1 second, off for 1 second
other status	Always off

l Green light

Equipment situation	light status
Before the program is ready	Solid on
during upgrade	On for 1 second, off for 4 seconds
update completed	\
The card is recording normally	On for 1 second, off for 1 second
Unrecorded card abnormal	On for 0.1 seconds, off for 0.1 seconds, flashing 4 times at a time, flashing once every 4 seconds
other status	Always bright

TF card/SIM card/USB location

best 3 Channel Dash Cam

Dsah Cam Certification

Dsah Cam CE certification

Dsah Cam FCC certification

Dsah Cam UKCA certification

Dsah Cam NBTC certification

How much does a 3 channel dash cam cost?

Do you need a 720p or 1080p camera to record videos for the dashcam you want to buy? Do you require installation assistance or customized fleet management software? All these factors can affect our pricing for the 4 channel dashcam. You can email us your requirements at hello@fudi360.com and we will send you our official quotation within 4 hours.

Are fleet dash cams legal?

Fleet dash cams are legal in most regions, but specific regulations vary by country. Some areas may have specific requirements for the use and data protection of the dash cam. It is recommended to consult with the relevant local agencies before installation and abide by relevant regulations.

What data does the fleet dash cam record?

The fleet dash cam can record video, sound, driving speed, GPS position, time and other information in and around the car. Some advanced models can also record vehicle acceleration, steering angle, mileage, fuel consumption, driver status and other data. This data can be used to monitor driving habits, identify causes of accidents, improve route planning, and more.

How do fleet dash cams work?

Fleet dash cams are usually installed inside vehicles and collect driving data through cameras and other sensors. They record video, sound, GPS location, vehicle speed, and more and store it on the device or in the cloud. These data can be used to analyze driving behavior, map driving paths, replay accidents, and more.

Does the dash cam record video when your car is not running?

When the car is parked or turned off, the AI car camera stays alert and can continue to help your car work safely in low power mode. The onboard camera will "wake up" to record a triggering event, such as detected motion.

Why are fleets using commercial dash cams?

Accidents involving commercial vehicles are becoming more frequent and insurance claims are a time-consuming issue for both drivers and fleet managers. The lack of hard evidence often means companies are automatically liable for false claims, money grabs and losses that currently cost businesses millions of dollars each year.

Yuwei's commercial dash cam is a compact combination camera and recording system that provides evidence in the event of a vehicle accident. These palm-sized devices easily attach to windshields to record the road ahead.
